| Parameter | Specification |
|---|---|
| Center Wavelength | 630 nm & 1060 nm |
| Band Width | ± 10 nm |
| Insertion Loss | ≤ 0.8 dB |
| Isolation | ≥ 20 dB |
| Return Loss | ≥ 55 dB |
| PDL | ≤ 0.1 dB |
| Operating & Storage Temperature | -40°C ~ +85°C |

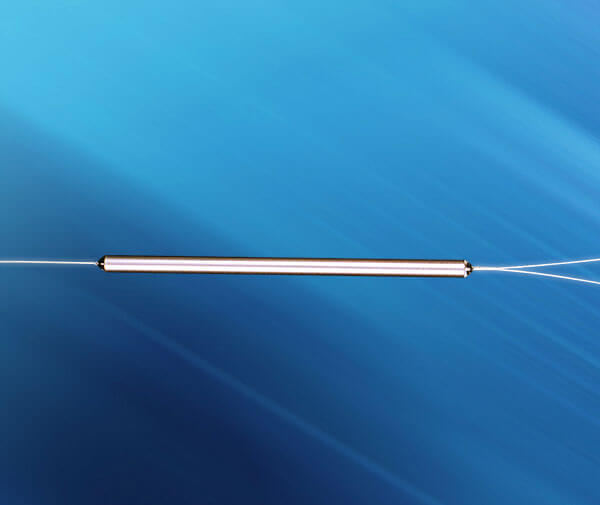

| Package Dimensions - Light Duty (B) | 3.0mm (Φ) x 60.0mm (L) |
| Package Dimensions - Medium Duty (L) | 3.0mm (Φ) x 65.0mm (L) |
| Package Dimensions - Heavy Duty (K,R) | 100.0mm x 12.0mm x 8.0mm |
Note 1: All values specified are without connectors.
Note 2: Higher performance specifications available upon request.
