| Parameter | Premium | A Grade |
|---|---|---|
| Operating Wavelength Range | 1310 ± 20 nm or 1550nm ± 20 nm | |
| Insertion Loss | ≤ 3.5 dB | ≤ 3.7 dB |
| Uniformity | ≤ 0.6 dB | ≤ 0.9 dB |
| Return Loss | ≥ 55 dB (1x2); ≥ 65 dB (2x2) | |
| PDL | ≤ 0.03 dB | ≤ 0.05 dB |
| TDL | ≤ 0.2 dB | |
| Operating & Storage Temperature | -40°C ~ +85°C | |
| Package Dimensions - Light Duty (B) | 3.0mm (Φ) x 55.0mm (L) | |
| Package Dimensions - Medium Duty (L) | 3.0mm (Φ) x 60.0mm (L) | |
| Package Dimensions - Heavy Duty (K,R) | 100.0mm x 12.0mm x 8.0mm | |
Note: Specifications based on 50/50 ratio
| Tap Coupler | ||
|---|---|---|
| Coupling Ratio | Max Insertion Loss | |
| Premium | A Grade | |
| 40/60 | 4.7/2.7 dB | 5.0/2.9 dB |
| 30/70 | 6.0/1.9 dB | 6.4/2.2 dB |
| 20/80 | 7.9/1.2 dB | 8.5/1.4 dB |
| 10/90 | 11.3/0.6 dB | 12.7/0.8 dB |
| 5/95 | 15.0/0.4 dB | 16.0/0.5 dB |
| 1/99 | 23.5/0.3 dB | 24.0/0.4 dB |

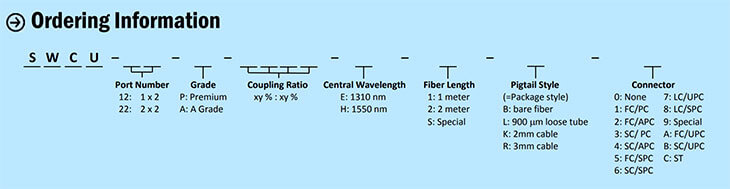

Note1: All values specified are without connectors.
Note2: Higher performance specifications are available upon request.
Note3: Fiber type – Corning SMF-28e unless otherwise specified.
